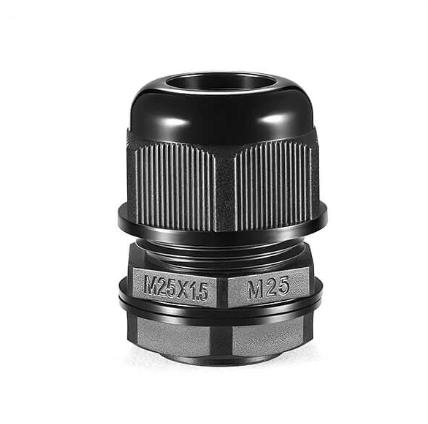

Nylon A-Type Split Cable Gland Overview
The Nylon A-Type Split Cable Gland is a high-performance sealing accessory made from durable PA66 nylon. Designed for industrial, aerospace, automotive, and electronic applications, it protects cable joints from moisture, dust, and corrosion.
Key Features:
  • Split Design: Allows for easy installation on pre-terminated cables, significantly saving time and labor costs.
  • Safety Certified: Features high fire resistance with UL certification, meeting strict European and US environmental standards.
  • Robust Protection: Offers excellent waterproofing, high tensile strength, and wear resistance.
  • Durability: Withstands harsh conditions, including high temperatures and mechanical stress, ensuring stable operation.
Category:

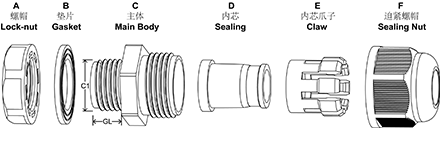

Decomposition Diagrams

Technical Data sheet

Nylon Cable Gland (A Type Divided Body)
Metric
Thread Part No. Cable Range
φ(mm)		 Thread O.D
C1(mm)		 Thread Length
GL（mm）		 Spanner Size
A/F(mm)		 Std.pkg
(pcs/bag)
M12*1.5 MGA12-5.5 3-6.5 12 8.5 18/19 50
MGA12-08 4-8 12 8.5 18/19 50
M16*1.5 MGA16-7-ST 4-7 16 10 22/22 50
MGA16-10-ST 6-10 16 10 22/22 50
MGA16L-7 4-7 16 15 22/22 50
MGA16L-10 6-10 16 15 22/22 50
M20*1.5 MGA20-11-ST 6-11 20 10 27/27 50
MGA20-14-ST 8-14 20 10 27/27 50
MGA20L-11 6-11 20 15 27/27 50
MGA20L-14 8-14 20 15 27/27 50
M25*1.5 MGA25-16-ST 12-16 25 12 33/33 50
MGA25-18-ST 13-18 25 12 33/33 50
MGA25L-16 12-16 25 15 33/33 50
MGA25L-18 13-18 25 15 33/33 50
M32*1.5 MGA32-22 15-22 32 12 41/42 20
MGA32-25 18-25 32 12 41/42 20
MGA32L-22 15-22 32 15 41/42 20
MGA32L-25 18-25 32 15 41/42 20
M40*1.5 MGA40-26 20-26 40 20 50/52 10
MGA40-31 24-31 40 20 50/52 10
M50*1.5 MGA50-33 25-33 50 22 62/62 10
MGA50-41 31-41 50 22 62/62 10
M63*1.5 MGA63-46 39-46 63 25 75/75 10
MGA63-51 44-51 63 25 75/75 10
M75*2.0 MGA75-56 50-56 75 25 92/92 1
MGA75-66 56-66 75 25 92/92 1
M90*2.0 MGA90-68 58-68 90 25 110/110 1
MGA90-77 66-77 90 25 110/110 1
PG
Thread Part No. Cable Range
φ(mm)		 Thread O.D
C1(mm)		 Thread Length
GL（mm）		 Spanner Size
A/F(mm)		 Std.pkg
(pcs/bag)
PG7 PGA7-5.5 3-5.5 12.5 8 17/19 50
PGA7-8 4-8 12.5 8 17/19 50
PG9 PGA9-5.5 3-5.5 15.2 8.2 22/19 50
PGA9-8 4-8 15.2 8.2 22/19 50
PG11 PGA11-7 4-7 18.6 10 24/22 50
PGA11-10 6-10 18.6 10 24/22 50
PG13.5 PGA13.5-9 5-9 20.4 10 27/24 50
PGA13.5-12.5 8-12.5 20.4 10 27/24 50
PG16 PGA16-11 7-11 22.5 11 30/27 50
PGA16-14 8-14 22.5 11 30/27 50
PG21 PGA21-16 10-16 28.3 12 36/33 50
PGA21-18 12-18 28.3 12 36/33 50
PG29 PGA29-22 15-22 37 12 46/41 20
PGA29-25 18-25 37 12 46/41 20
PG36 PGA36-26 20-26 47 14 57/52 10
PGA36-31 24-31 47 14 57/52 10
PG42 PGA42-33 25-33 54 15 64/62 10
PGA42-41 31-41 54 15 64/62 10
PG48 PGA48-46 39-46 59.3 18.2 70/75 10
G
Thread Part No. Cable Range
φ(mm)		 Thread O.D
C1(mm)		 Thread Length
GL（mm）		 Spanner Size
A/F(mm)		 Std.pkg
(pcs/bag)
G(PF)1/4″ GA1/4-5 3-5.5 13.157 8.5 19/19 50
GA1/4-8 4-8 13.157 8.5 19/19 50
G(PF)3/8″ GA3/8-7 4-7 16.662 10 22/22 50
GA3/8-10 6-10 16.662 10 22/22 50
G(PF)1/2″ GA1/2-9 5-9 20.955 10 27/24 50
GA1/2-12.5 6-12.5 20.955 10 27/24 50
G(PF)3/4″ GA3/4-13 7-13 26.441 12 36/33 50
GA3/4-18 13-18 26.441 12 36/33 50
G(PF)1″ GA1-21 15-22 33.249 15 46/41 20
GA1-25 18-25 33.249 15 46/41 20
G(PF)1 1/4″ GA1 1/4-25.5 17-25.5 41.91 15 57/22 10
GA1 1/4-31 24-31 41.91 15 57/22 10
G(PF)1 1/2″ GA1 1/2-33 25-33 48 22 60/62 10
GA1 1/2-41 31-41 48 22 60/62 10
G(PF)2″ GA2-46 39-46 60 25 72/65 10
GA2-51 44-51 60 25 72/65 10
